Industrial-scale water filtration
When water is used in heat exchangers, turbine condensers, or evaporators, effective protection against coarse debris is indispensable. Macrofouling and debris have serious consequences: They impair the free inflow of the heat-transfer medium into the heat exchanger and have a direct effect on heat transfer and hydraulic performance. The result is that pressure loss increases, efficiency drops, and plant availability decreases. To prevent this, water filtration that is tailored to the specific application is required. This is the only way to ensure full functionality – even with changing loads and highly variable raw water quality. Debris filters in industrial-scale water filtration are therefore the crucial and final component for managing macrofouling. They are installed immediately upstream of the system component or device to be protected.
Debris filters are not a “one size fits all” product
The requirements for debris filters vary greatly due to:
- local conditions (type and quantity of debris),
- functional requirements (volume flow, degree of filtration, permissible backwash flow), and
- safety-related concerns (special safety features, redundancy, seismic requirements).
They are therefore designed and engineered on an individual basis.
Filtration solutions as unique as your plant
Space and installation conditions as well as the need to harmonize with upstream intake solutions are key factors when it comes to developing a filter solution. This yields a variety of individual filtration concepts, ranging from compact filtration solutions for protecting individual devices all the way up to high-availability, specialized end-to-end solutions for power plants, desalination plants, and industrial plants.
Overview of performance categories
- Compact filtration at the inlet to individual devices
For low to medium volume flows and retrofit projects with limited installation space. Self-cleaning debris filters ensure continuous 24/7 operation.
- High-performance filtration
For large cooling water systems with a high or highly variable debris load. The key parameter here is the ability to remove as much debris as possible as quickly as possible (high performance ratio). Backwashing is controlled via differential pressure using the lowest possible backwash flows.
- Fine filtration
For applications with small gap widths or stricter water quality requirements. Filter finenesses down to the micrometer range provide reliable protection for sensitive components, including for plate-type heat exchangers and in the pretreatment stage in membrane technology systems.
Specialized filtration solutions
For particularly demanding operating conditions, special safety requirements, and targeted process stabilization. In power plants, in particular, these filters are a key safety component for maintaining plant operation in critical situations (typhoon, hurricane, storm surges).
Filtration in the overall system
After water has been taken in, debris filters are the key and final component for protecting heat exchangers from macrofouling.
Debris Filters for maximum plant availability
Debris Filters ensure maximum plant availability in industrial-scale water circuits by consistently preventing operational disruptions caused by macrofouling. At the same time, they are absolutely essential in thermal water circuits for ensuring uninterrupted operation of a downstream heat exchanger cleaning system. This system is used to prevent microfouling in evaporator and condenser tubes, rounding off the overall solution for preventing fouling in water circuits.

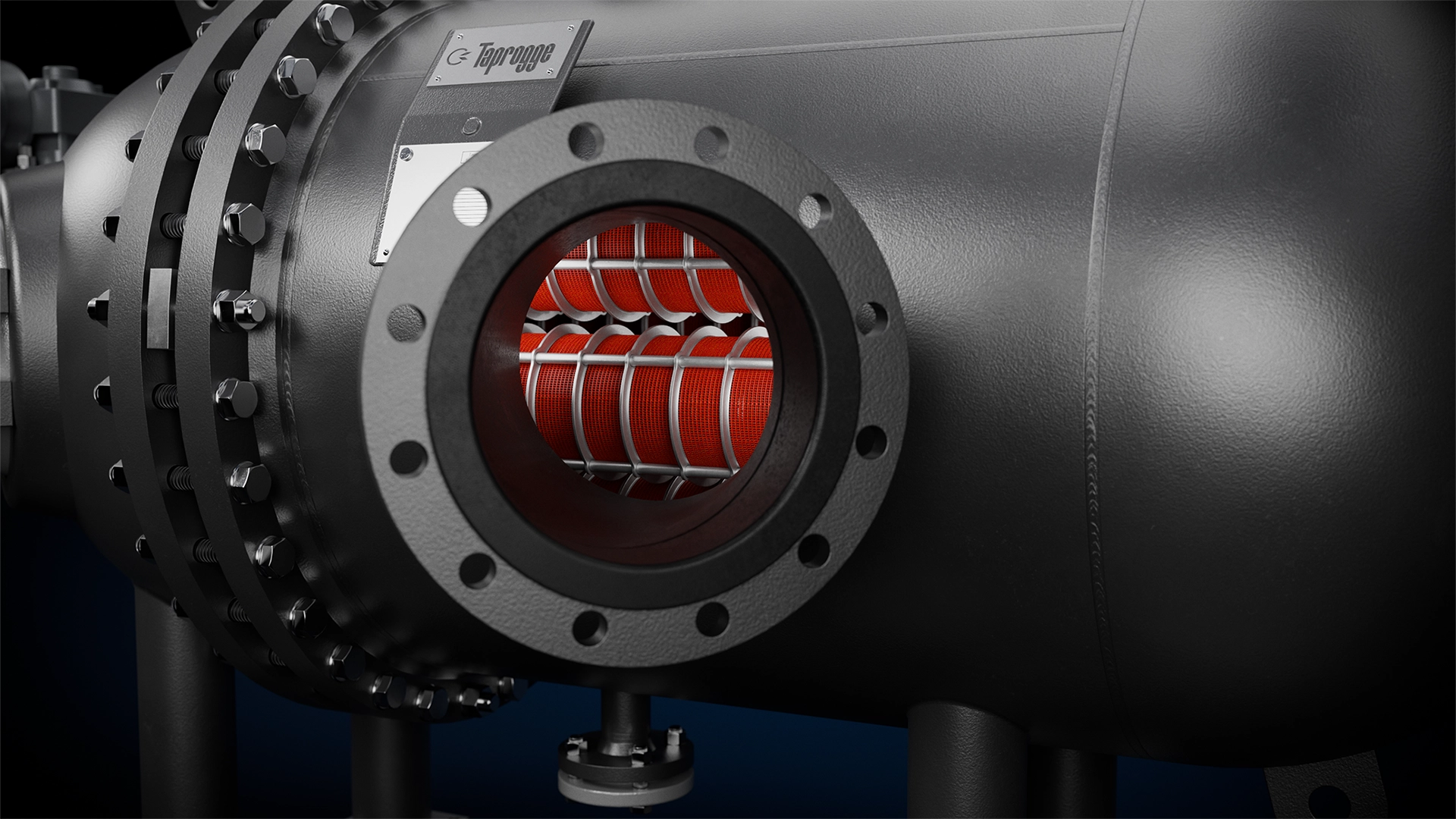

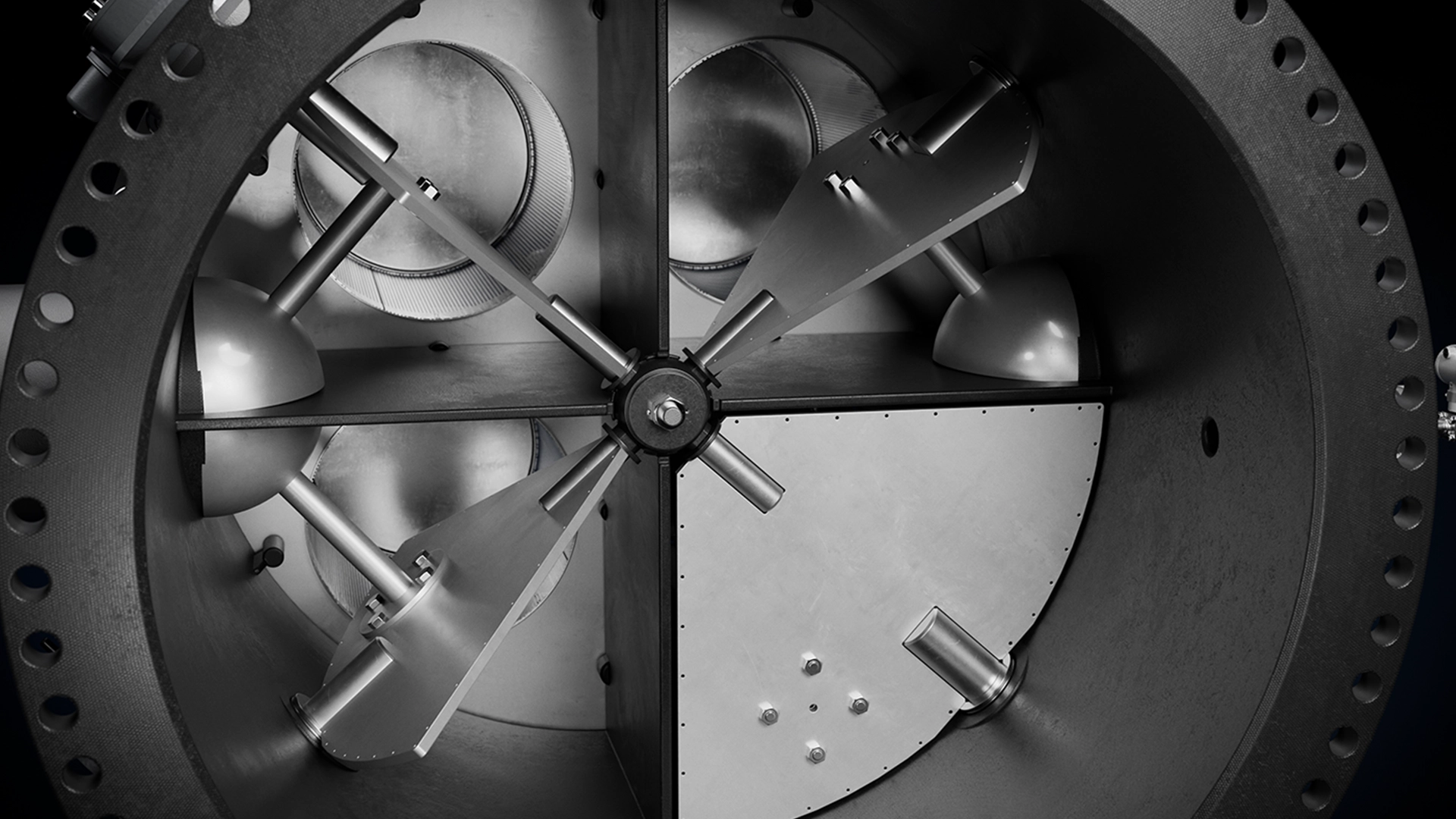

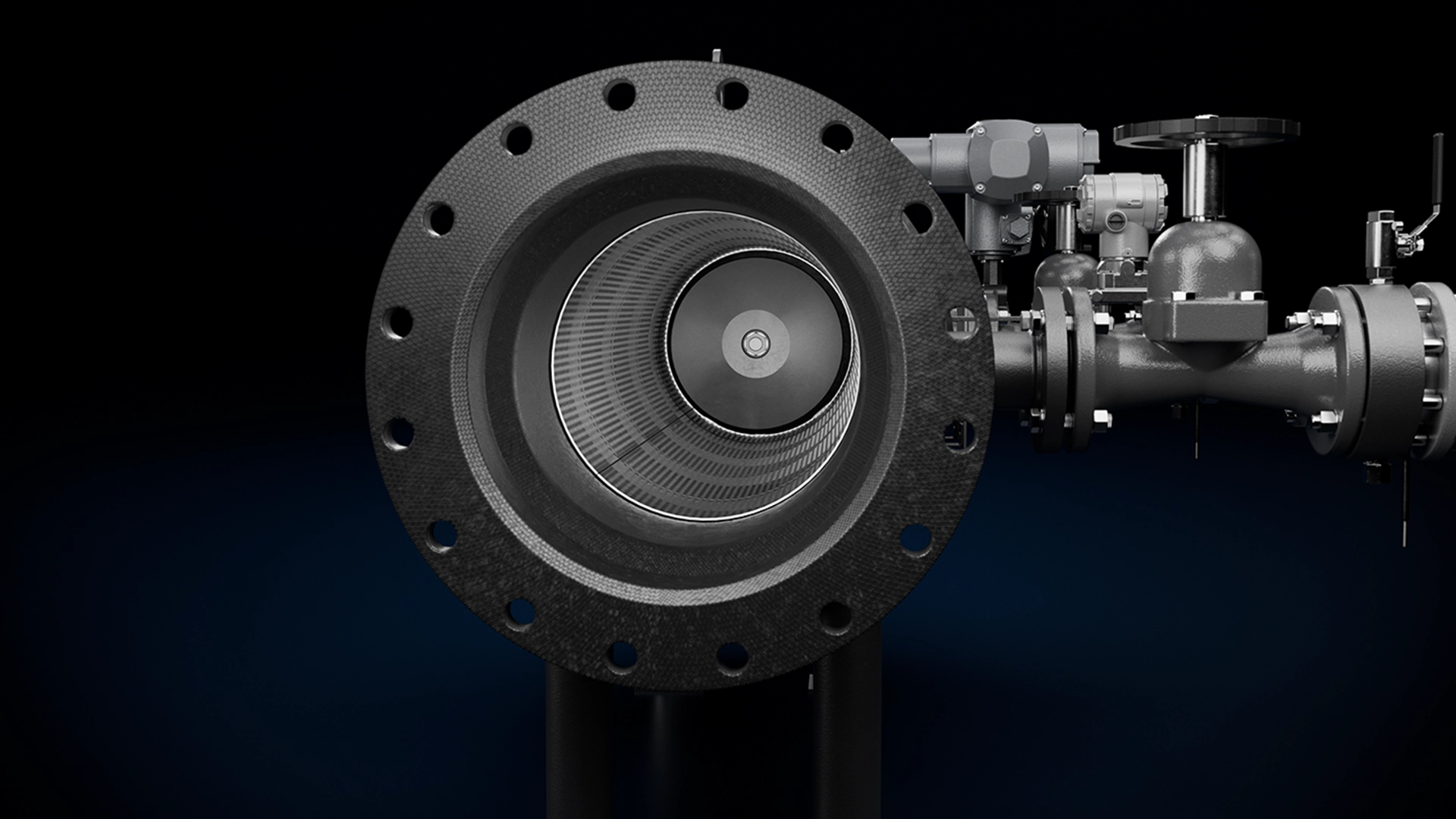

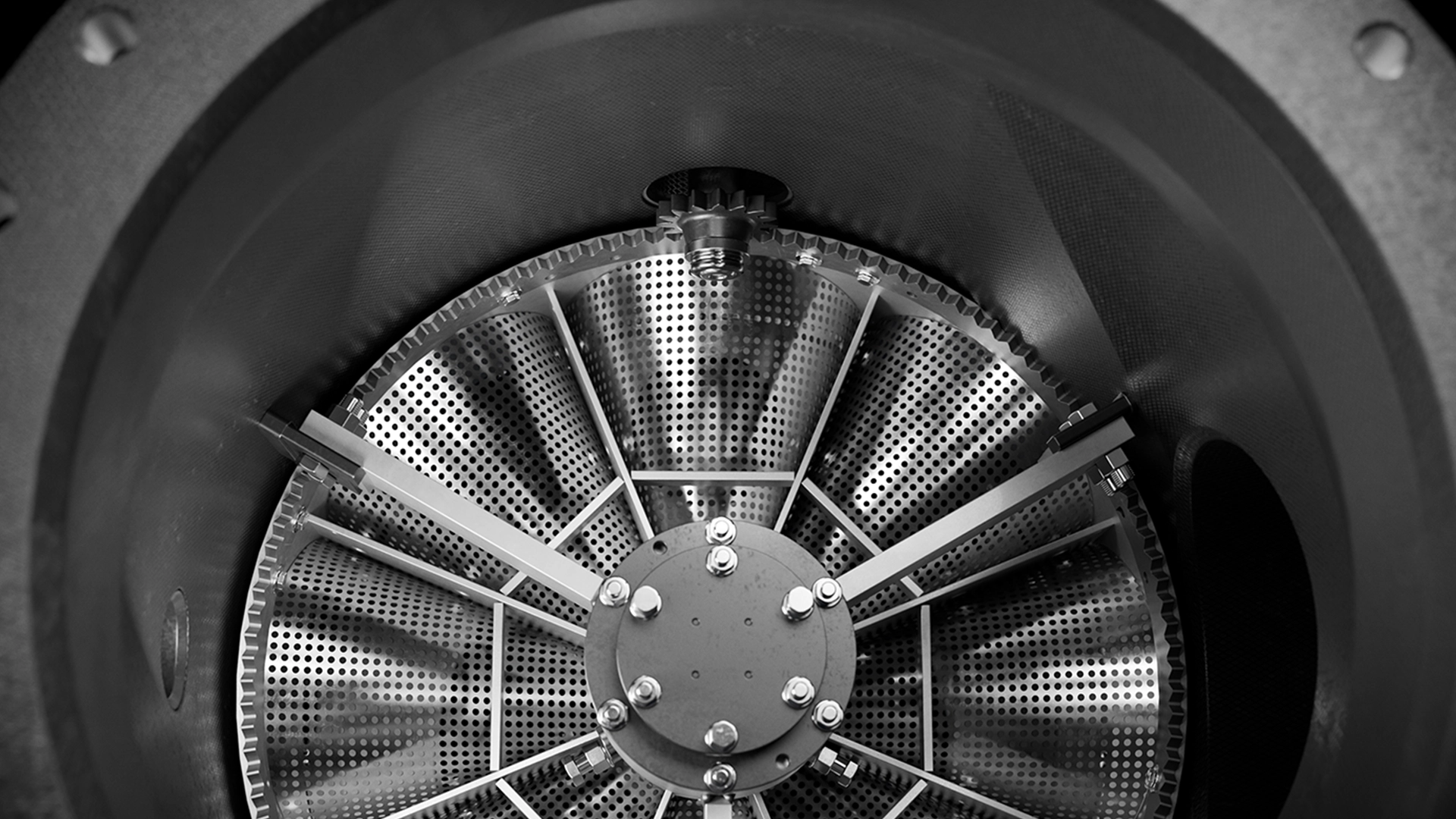

Discover our range of filter systems – suitable for different volume flows, filter finenesses, and design objectives.
